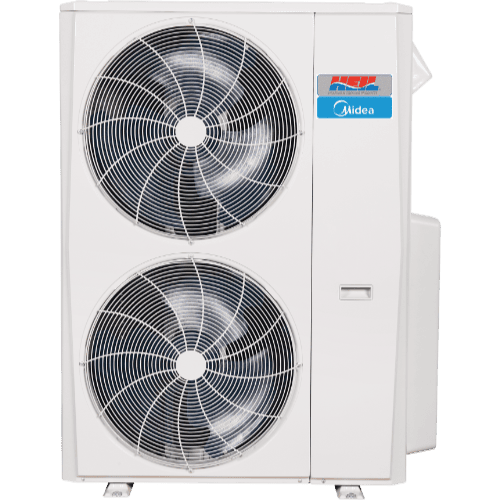

Heil DLCMRB QuietComfort® Multi-Zone Heat Pump
Bring comfort to multiple spaces with the new multi-zone heat pump. This energy-efficient unit provides ratings of up to 23.1 SEER2 and up to 12.5 EER2 with the flexibility to be connected from two to five indoor units. Equipped with Condenser High-temperature Protection, Refrigerant Leakage Detection and available in sizes 18, 36 & 48, there is certainly a size to meet your cooling and heating needs.
Features & Benefits
- Inverter Compressor
- Up to 23.1 SEER2 cooling efficiency
- Up to 12.5 EER2 heating efficiency
- Available in 208/230V
- Sizes: 18 / 36 / 48 /
- Built-in basepan heater
- Condenser high-temperature protection
- Refrigerant leakage detection
- Extremely quiet outdoor operation, as low as 59 dB(A)
- Anti-corrosive fin coating
Specifications
- Up to 23.1 SEER2
- Up to 12.5 EER2
- Up to 10.2 HSPF2
- Outdoor sound: as low as 59 decibels
- Cooling operating range -22°~122° F (-23°~50° C)
- Heating operating range -22°~75° F (-30°~24° C)
- Total piping length 131~328 ft. (40~100 m)
- Vertical Lift/Drop piping Length 49~65 ft (15~20 m)
- Inverter Compressor
- 1.5, 3 & 4 Ton
- 208/230V
- Heavy-gauge, galvanized steel construction
- Primed and coated with a 100% coverage, baked-enamel finish in white
