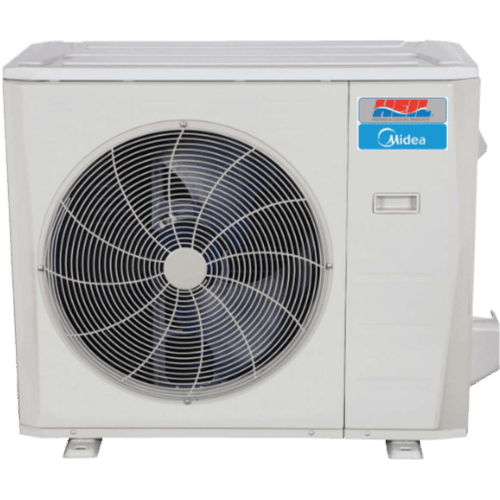

Heil DLCSRB QuietComfort® Heat Pump
The new heat pump is a powerhouse unit with up to 26.4 SEER2 and up to 15.8 EER2 efficiency. Features like Refrigerant Leakage Detection and Condenser High-Temperature Protection make this unit intelligent as well as efficient. Available in sizes from 9 to 36 with four different style indoor unit options, there is certainly a system to meet your cooling and heating needs.
Features & Benefits
- Inverter Compressor
- Up to 26.4 SEER2 cooling efficiency
- Up to 15.8 EER2 heating efficiency
- Available in 115V and 208/230V
- Sizes: 09 / 12 / 18 / 24 / 30 / 36
- 100% heating capacity at 5° F (-15° C) Sizes 12-18 (208/230V)
- Built-in basepan heater
- Auto-restart function
- Condenser high-temperature protection
- Refrigerant leakage detection
- Extremely quiet outdoor operation, as low as 54 dB(A)
- Anti-corrosive fin coating
Specifications
- Up to 26.4 SEER2
- Up to 15.8 EER2
- Up to 12.4 HSPF2
- Outdoor sound: as low as 54 decibels
- Cooling operating range -13° ~ 122° F (-25° ~ 50° C)
- Heating operating range -22° ~ 86° F (-30° ~ 30° C) – sizes 9-24 (208/230V)
- Heating operating range -13° ~ 86° F (-25° ~ 30° C) – sizes 9, 12 (115V) & 30, 36 (208/230V)
- Piping length 82 ~ 164 ft. (25 ~ 50 m)
- Inverter Compressor
- 0.75 – 3.0 Ton
- 115V & 208/230V
- Heavy-gauge, galvanized steel construction
- Primed and coated with a 100% coverage, baked-enamel finish in white
